Inside Flange Conical Points

Model: P14006

Conical Points are the preferred end closure for pipe piles. The conical shape pushes the earth aside and preserves friction. The snub nose conical is an economical design which provides end protection in most soil conditions.

Size:	The snub nose conical point is available for 8-5/8", 10-3/4", 12", 12-3/4", 14", 16", 18" & 20" O.D. pipe.
Benefits:	60 degree Conical Points with heavy internal ribs aid in penetration in most soils. On boulders or uneven rock, the point helps to distribute the load around the periphery of the pipe rather than concentration it on a quadrant - as occurs with plate closure.
Steel Grade:	High Strength Heat-Treated Cast Steel Grade ASTM A148 80/50 - other grades also available.

Download Datasheet

Inside Flange Conical Points

Model: P13006

Conical Points are the preferred end closure for pipe piles. The conical shape pushes the earth aside and preserves friction. This model is the heavy-duty conical which generally is used for breaking through thick strata and difficult driving conditions.

Size:	The P13006 model is available for 12-3/4", 14", 20", & 24" O.D. pipe.
Benefits:	60-degree conical points with heavy internal ribs aid in penetration in difficult soils. On boulders or uneven rock, the point helps to distribute the shock load around the periphery of the pipe rather than concentrating it on a quadrant - as occurs with plate closure.
Steel Grade:	High Strength Heat-Treated Cast Steel Grade ASTM A148 90/60 - other grades also available.

Download Datasheet

Inside Flange Conical Points

Model: CP99

Conical points are the preferred end closure for pipe piles. The conical shape pushes the earth aside and preserves friction. This model is the heavy-duty conical which generally is used for breaking through thick strata and difficult driving conditions.

Size:	Available for 12" O.D., 13-3/8", 16", 18", 20", 24", 36" O.D. pipe.
Benefits:	60-degree Conical Points with heavy internal ribs aid in penetration in most soils. On boulders or uneven rock, the point helps to distribute the load around the periphery of the pipe rather than concentrating it on a quadrant - as occurs with plate closure.
Steel Grade:	Heat-Treated Cast Steel Grade ASTM A27 65/35 or high grades

Download Datasheet

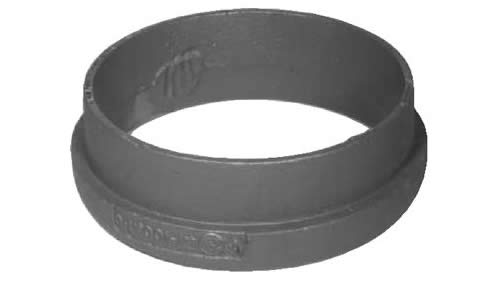

Inside Flange Open End Cutting Shoe

Model O-14001

The APF cutting shoe assists in providing end protection to the pipe during installation. An inside cutting shoe is needed when maximum friction surrounding the pile is desired. The pipe rests on the cutting shoe ledge rather than depending on welds in shear.

Size:	Available for 10-3/4", 12-3/4", 16", 20" & 24" O.D. pipe
Benefits:	Prevents damage and buckling to the bottom of the pipe during installation. Provides maximum friction surrounding the pile.
Steel Grade:	High Strength Heat Treated Cast Steel Grade ASTM A148 90/60

Download Datasheet

Inside Flange Open End Cutting Shoe

Model: CS77

The APF cutting shoe helps to provide end protection to the pipe during installation. An inside cutting shoe is needed when maximum friction surrounding the pile is desired. The pipe rests on the cutting shoe ledge rather than depending on welds in shear.

Size:	Available for 14", 18", 30", 42", & 48" O.D. pipe
Benefits:	Prevents damage and buckling to the bottom of the pipe during installation. Provides maximum friction surrounding the pile.
Steel Grade:	High Strength Heat Treated Cast Steel Grade ASTM A148 90/60

Download Datasheet

Inside Flange Open End Cutting Shoe

Model: VB7

The APF cutting shoe helps to provide end protection to the pipe during installation. An inside cutting shoe is needed when maximum friction surrounding the pile is desired. The pipe rests on the cutting shoe ledge rather than depending on welds in shear.

Size:	Available for 36" O.D. pipe
Benefits:	Prevents damage and buckling to the bottom of the pipe during installation. Provides maximum friction surrounding the pile.
Steel Grade:	High Strength Heat Treated Cast Steel Grade ASTM A148 90/60

Download Datasheet

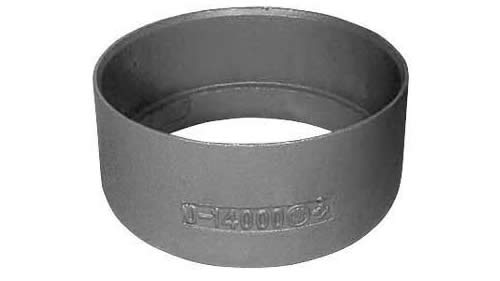

Outside Flange Open End Cutting Shoe

Model: O-14000

The APF Outside flange cutting shoe helps to provide end protection to the pipe during installation. The pipe rests on the driving ledge rather than depending on welds in shear. The outside flange cutting shoe is used when drilling inside the pipe, past the tip or rock socketing the pipe is required.

Size:	Available for 10-3/4" & 12-3/4" O.D. pipe
Benefits:	Prevents damage and buckling to the bottom of the pipe during installation. Provides maximum friction surrounding the pile. Allows for drilling inside the pipe and rock socketing the pile without any interference from the cutting shoe.
Steel Grade:	High Strength Heat Treated Cast Steel Grade ASTM A148 90/60

Download Datasheet

Outside Flange Open End Cutting Shoe

Model: CS22

The APF Outside flange cutting shoe helps to provide end protection to the pipe during installation. The pipe rests on the driving ledge rather than depending on welds in shear. The outside flange cutting shoe is used when drilling inside the pipe, past the tip or rock socketing the pipe is required.

Size:	Available for 14", 16", 18", 20", 24", 30", & 36" O.D. pipe.
Benefits:	Prevents damage and buckling to the bottom of the pipe during installation. Provides maximum friction surrounding the pile. Allows for drilling inside the pipe and rock socketing the pile without any interference from the cutting shoe.
Steel Grade:	High Strength Heat Treated Cast Steel Grade ASTM A148 90/60

Download Datasheet

Inside Flange Conical Points

Model: VB9

Conical points are the preferred end closure for pipe piles. The conical shape pushes the earth aside and preserves friction. This model is the heavy-duty conical which generally is used for breaking through thick strata and difficult driving conditions.

Size:	Available for 30" O.D. pipe.
Benefits:	60-degree Conical Points with heavy internal ribs aid in penetration in most soils. On boulders or uneven rock, the point helps to distribute the shock load around the periphery of the pipe rather than concentrating it on a quadrant - as occurs with plate closure.
Steel Grade:	High Strength Heat-Treated Cast Steel Grade ASTM A27 90/60 - other grades also available.

Download Datasheet

Drive-On Pipe Pile Splicer

Model: S-20000

Of special interest for pipe piles is the Drive-On Splicer. Driving into the tapered splice compresses the pipe ends for a friction fit connection. No welding is required, speeding the job and minimizing the crew and equipment time.

Sizes:	7-5/8", 8-5/8", 9-5/8", 10-3/4", 12", & 12-3/4" O.D. pipe.
Benefits:	The splicer's internal tapers allow for the pile hammer to seat the pipe into the splicer on both ends, eliminating the need for welding, speeding installation, saving both time and money. Low headroom situations benefit from use of short lengths of pipe that need to be spliced.
Steel Grade:	High Strength Heat-Treated Cast Steel Grade ASTM A148 90/60

Download Datasheet

Weld Fit Pipe Pile Splicer

Model: S-20000 WF

The weld fit splicer is recommended when tension and uplift values are required. Fillet welds both top and bottom are required for attachment.

Size:	7-5/8", 8-5/8", 9-5/8", 10-3/4", 12", & 12-3/4" O.D. pipe.
Benefits:	This splicers can also be used in low head room situations. The weld fit splicer can also be pre-attached on one end and brought to the jobsite for final attachment, thus saving both time and money on site.
Steel Grade:	High Strength Heat-Treated Cast Steel Grade ASTM A148 90/60

Download Datasheet

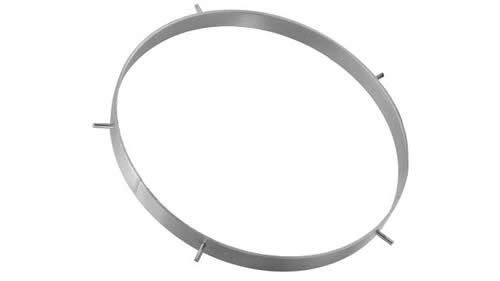

Backing Rings

Model: S-40000

The APF Split Backing Ring is fabricated from carbon steel. Backing rings are used when full penetration butt welds are specified. Chamfered pins set the proper gap for the initial root pass.

Size:	Custom sizes available upon request.
Benefits:	The split backing ring is placed on the inside diameter of the pipe providing back-up for the weld for full penetration welds.
Steel Grade:	Carbon Steel A109 or higher grades

Download Datasheet

Bruns Pipe Splicer

Model: S-20000B

The Bruns Splicer is popular in New Orleans where pre-stressed concrete piles need to be extended. Also referred to as the "Bruns Pile Connector", short pipe ferrules are cast on one end of each length of the concrete pile. An impact plate is tack-welded inside the splicer. The pipe ends are inserted into the splicer for a friction fit connection.

Size:	14". Additional sizes available upon request.
Benefits:	The modified splicer functions to extend the lengths as it would on pipe.
Steel Grade:	High Strength Heat-Treated Cast Steel Grade ASTM A148 90/60

Download Data Sheet

Plastic Pile Caps

Model: C-19000

The plastic pile caps are injection molded in order to maintain a uniform thickness of 0.100". There a 4 pre-punched holes on the flanges for nailing. The cap can be used on pipe, timber, or concrete piles. Available in round or square; flat or cone shaped; black or white.

Size:	Standard sizes range from 5.5" I.D. to 18" I.D. Larger sizes up to 36" I.D. Availability of size, shapes & color upon request.
Benefits:	Easy to install and a cost effective means to protect the pile investment from internal rot. Caps cover the top of the pile, providing safety on site from anything falling into the top of an open pipe pile. The cone shape helps to discourage birds from perching. Also offers a finished look to timber piles on dock or other pipe, timber or concrete structures. Plastic pile caps are UV resistant.
Grade:	Heavy weatherable polyethylene plastic.

Download Datasheet
